On stock!!! 3 years warranty QNBBM Lithium Battery Balancer/Equalizer For Balance Voltage Difference
- 2022-12-13 -
On stock!!! 3 years warranty QNBBM Lithium Battery Balancer/Equalizer For Balance Voltage Difference
|
Battery capacity limited
|
Unlimited
|
Battery count limited
|
2S~unlimited
At least balance 2 cells
|
|
Working voltage
|
1.8V~5V (2V lead acid battery and lithium battery)
4V~9V (6V lead acid battery)
9V~15V (12V lead acid battery and lithium battery)
|
Battery type limited |
LiFePo4, LiMnO4 etc
AGM, Gel, Flooded battery and so on.
|
|
Power consumption
|
<50mW per 1s
|
Balance method
|
Energy transfer/ Dynamic
|
|
Voltage difference VS Balance current
|
300mV — 1A
1V — 3A
|
Voltage difference after using
|
< 10mV
< 30mV(12V lead acid)
|
|
Working efficiency
|
> 94%
|
Working temperature
|
-40℃ ~ +80℃
|
|
BMS limited
|
Can work with BMS or Wordking independently
|
Storage temperature
|
-40℃ ~ +100℃
|
Functions:
Keep the voltage difference of each cell within 10mv.
Extend the battery span life 2-3times. Without capacity & voltage & battery type limitation .
Your best battery pack protector. Perfect combination with BMS Let’s Save cost from now.
Features of Deligreen Battery Equalizer:
| Online Working | To blance during charge,discharge,storage |
| Dynamic equalizing: | To prevent batteries out of balancing all the time |
| Engery transfer: | Transfer energy from higher voltage cell to lower ones |
| Maintenance and recovery: | To Keep normal batteries at a good condiction ,recover the backwards ones |
| Sharing capacity: | Let the power flow from one cell to another and share them among the cells |
| Simple installation: | Connect the balancer together then connect to battery+ and battery- |
| Independent: | No affect to battery pack wiring,no impact to charging and discharging |

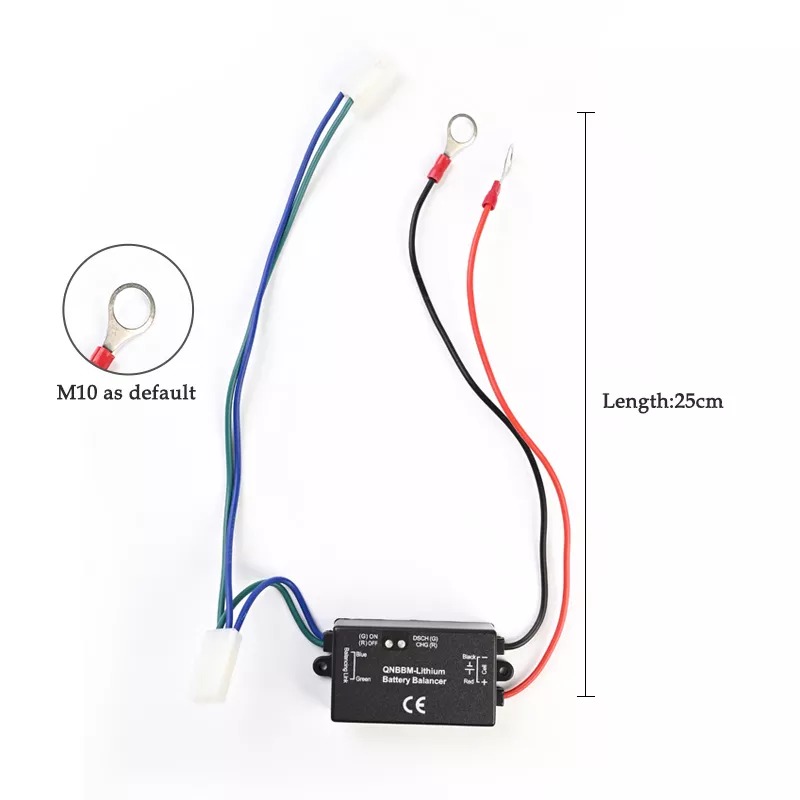

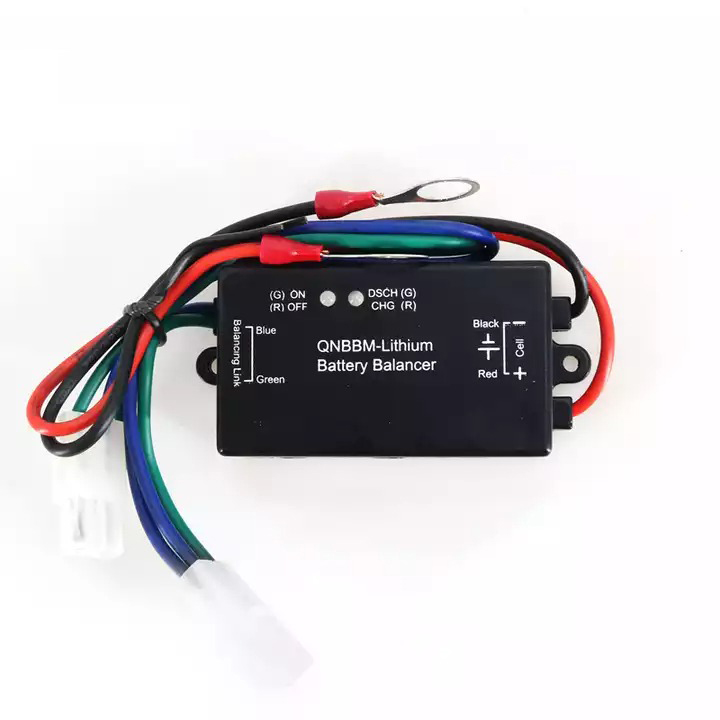

Detail image
