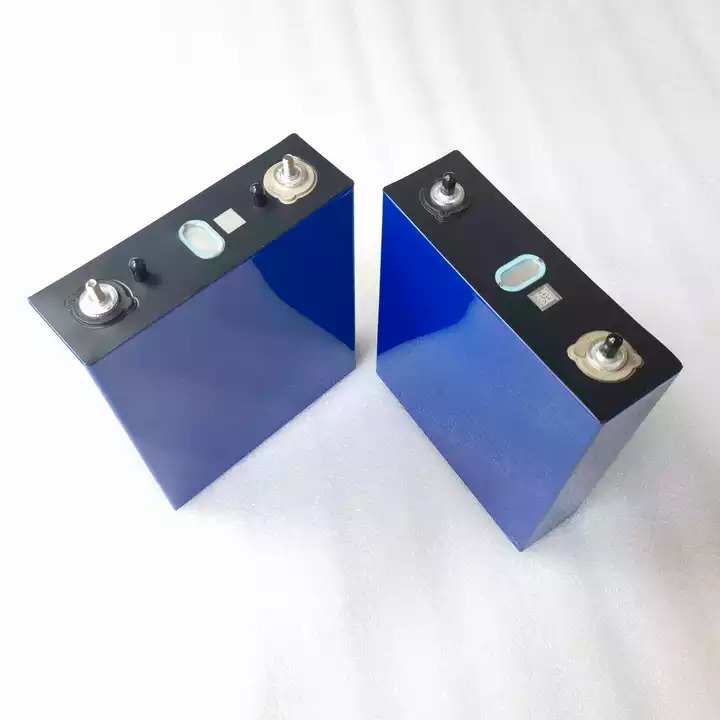

Newly grade-A brand new rechargeable calb 230ah l173f230 lifepo4 battery for energy storage system
- 2022-12-31 -
|
Normal capacity
|
230Ah
|
|
Normal voltage
|
3.2V
|
|
Work Voltage
|
2.5~3.65V
|
|
Internal resistance
|
≤0.3 mΩ
|
|
Discharge ending voltage
|
2.5 ±0.05 V
|
|
Standard charging current
|
3.65V
|
|
Absolute Charging Voltage
|
Maximum 3.8V
|
|
Maximum Pulse Discharging Current
（Short Pulse） |
690A When battery temperature is below 50℃, the maximum discharge can last 10s
|
|
Maximum Pulse Discharging Current
（Long Pulse） |
400A Maximum duration: 3min
|
|
Weight
|
5400g
|
|
Cell dimensions |
Thickness: 53.72±0.15mm Length: 173.93±0.15mm
Height: 207.2±0.3mm
|
|
cycle life
|
4000 + times
|
Notes :

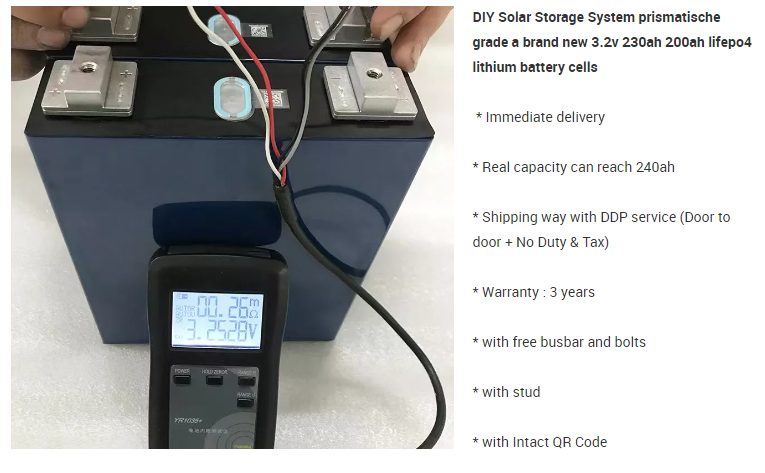

1.This item is CALB 3.2VLF230 230Ah battery , Grade A, Brand new with Intact QR code. Real capacity 240ah.REAL 4000TIMES DOD 80% 2.Free Busbars and bolts come with batteries，1pc battery will send one set busbar and bolt for free （e.g.,If buy 4pcs batteries ,we will send you 4pcs cells with 4 pcs busbars and 8pcs bolts）If need more ,please fell free to contact us . 3.The busbars size: 90*20*2mm (cooper plated with nickel) Screw size:M6 4.We will test Voltage ,Internal resistance for cells before delivery 5.Deligreen cooperated withEV E , CATL, LISHEN, CALB, REPT, Winston Yinglong batteries for more than 10 years . Fresh Stock for them ready to ship. Stock is King !!!
