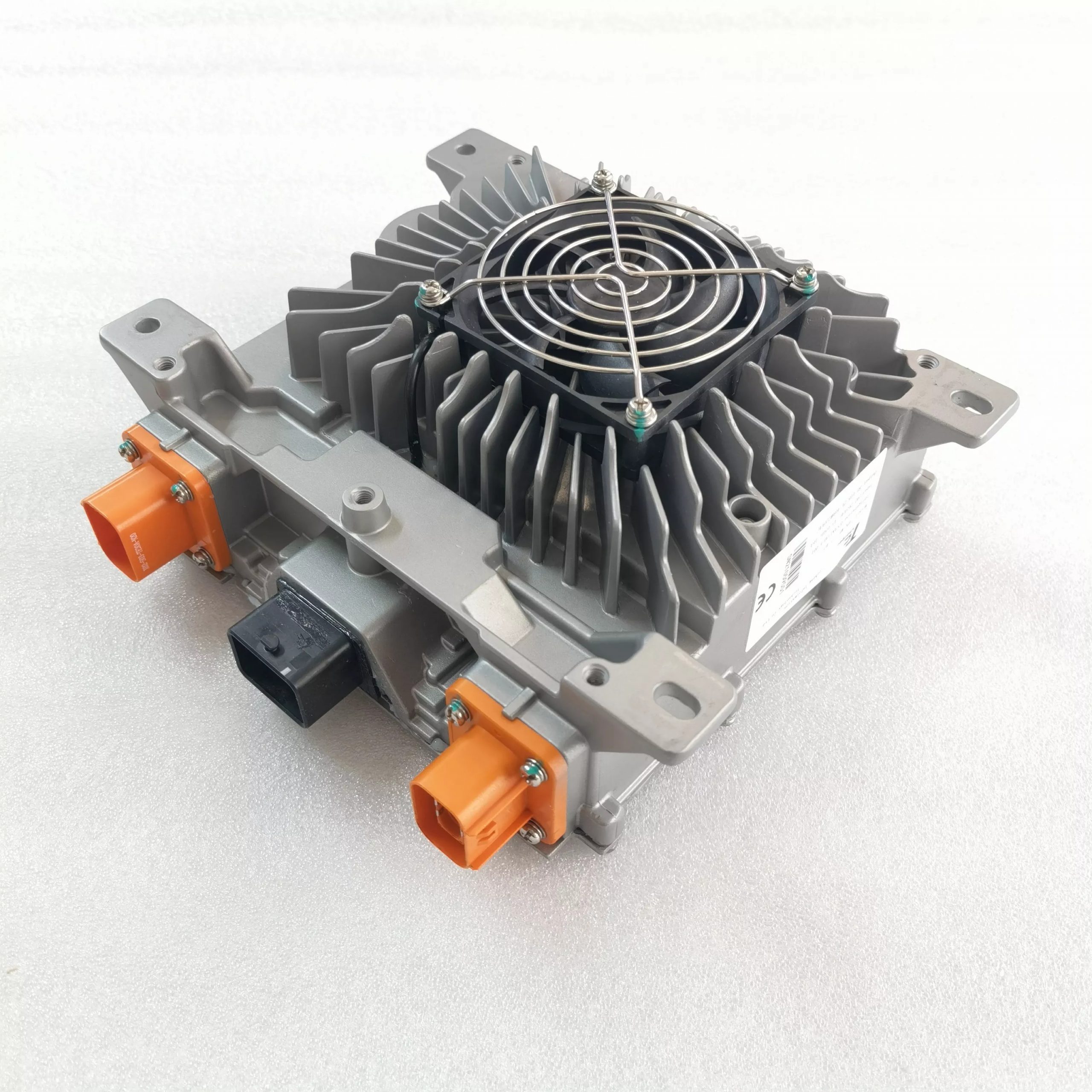

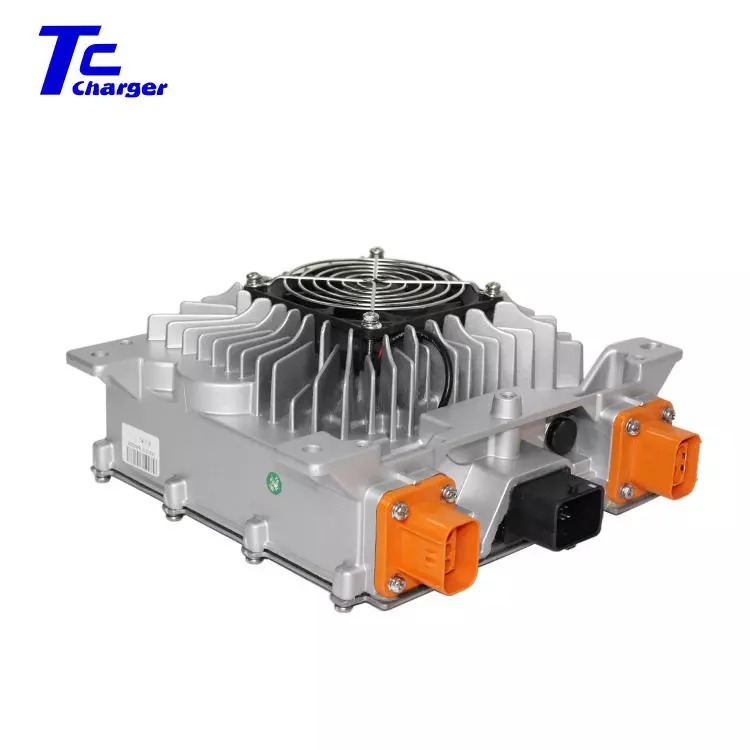

In stock Elcon EV car Charger TC 4th Generation 3.3KW HK-MF-312-10, 144-23, 108-23, 72-40, 48-40 Air cooling IP67 in stock

TC Charger 4th Generation — HK-MF series 3.3KW charger is a product specially designed for electric vehicle power battery supplementary electric energy according to the national standard of charger.

Models	Cooling method	Voltage Platform	Hardware	Power	Weight（kg）
HK-MF-48-40	Air cooling	48V	66V/40A	3.3KW	5kg
HK-MF-72-40	Air cooling	72V	99V/40A	3.3KW	5kg
HK-MF-108-32	Air cooling	108V	140V/32A	3.3KW	5kg
HK-MF-144-23	Air cooling	144V	195V/23A	3.3KW	5kg
HK-MF-312-10	Air cooling	312V	440V/10A	3.3KW	5kg

Specification

Main Features :

1.Support UDS diagnosis CAN wake-up function



2.Fully sealed process can work reliably under the conditions of -40℃-+85℃



3.Built-intemperature sensor to shut down output under hazardous operating conditions (internal 90°C)



4. Protection class IP67 Can work
safely under short-term water immersion conditions

Voltage Platform		48V	72V	96/108V	144V
Output	Output voltage range	30~66V	50~99V	65~140V	90~1950V
	Output current	40A	40A	32A	23A
	Output power	3300W@220VAC 1600W@110VAC
	Output Mode	CV / CC
	CV Accuracy	±1%
	CC Accuracy	±2%
	Ripple Voltage Coefficient	5%
Input	Input voltage range	AC 90~265V
	Frequency	45-65Hz
	Input current	16A
	Power factor	≥0.99 more than half load
	Effecificency	≥93% full -load
	Stand-by Consumption	≤5W
Low Voltage Output	Output Mode	Constant Voltage
	Output Voltage	13.8V
	Rated Current	5A
	CV Accuracy	±2%
	Output Power	≥62.5W
	Ripple Voltage Coefficient	1%
