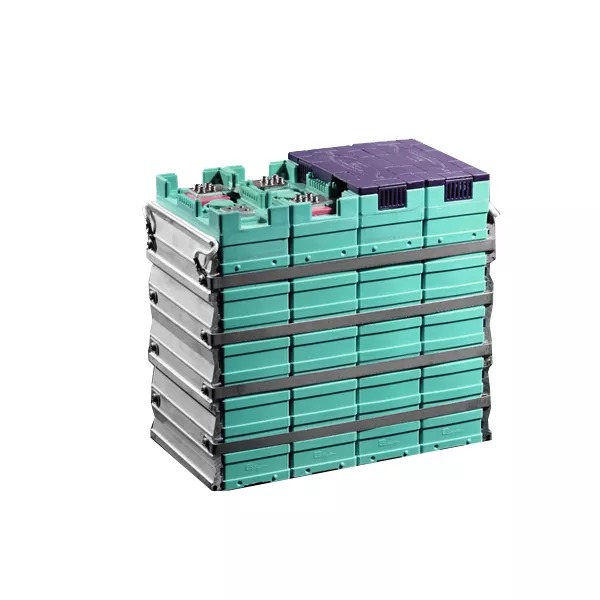

GBS lifePo4 12V 100ah Lithium batteries deep cycle 3000times lithium ion battery 12v 100ah
Specification of GBS LifePO4 battery :
|
Item |
Specification |
Remark |
||
| Rated capacity |
100Ah |
0.2C rate discharge capacity | ||
| Minimum capacity |
100Ah |
|||
| Internal impedance |
≤1.0mohm |
|||
| Nominal voltage |
3.2V |
|||
| weight |
3.5±0.15KG |
|||
| Standard discharge
conditions |
Constant current |
50A |
||
| End-of-charge voltage |
2.8V |
|||
| Standard charge
method |
Constant current |
25A |
||
| Charge voltage |
3.55V |
|||
| Fast charge method | Constant current |
100A |
||
| Charge voltage |
3.55V |
|||
| Max continuous discharge current |
300A |
|||
| Cycle life |
3000 cycles |
80% DOD | ||
| Operating temperature | Charging ambient
temperature |
0~45℃ |
||
| Discharging ambient
temperature |
-25~65℃ |
|||
| Storage temperature |
0~45℃ |
|||
| Appearance | Without break,
distortion, contamination, leakage. |
|||
Advantage of GBS Life PO4 Battery:
1.Output with high efficiency :Standard discharge current is 0.3C-0.8C,instant impulse discharge current is 10C for 10 seconds
2.Good perfomance under high temperature,it could work under 65℃ temperature.The battery structure is safe and good
3.Good performance under low temperature,discharge capacity decreased to over 78% under 0℃ and discharge capacity decreases to over 70% under-20℃
4.Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well.
When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
5.Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).
6.It can fast charging. It could be charged to 80% within 0.5h and charged full with 2-3h.
7.Low cost without pollution during manufacture and usage.
Buyers attention:
Please check if spare parts are completed when open the package and read the operation manual carefully.
Do not make the battery Short Circuit, do not over charge and discharge.
Please charge the new battery to full capacity before discharge for the first use.
The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.
Checking the voltage of battery, normally it is 3.2V-3.3V.
Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.
Rivet or screw is used for battery connector.Please use copper part to connect battery packs and fix with hydraulic pressure plier ,
we could also provice the relevant connection which fixed with screws.The charger used should be approved by our company in order to match with our lithium batteries
It will shorten battery cycle lifetime and damage battery due to over charge and over discharge
If not do according to the above ,it won’t be within our company warranty
