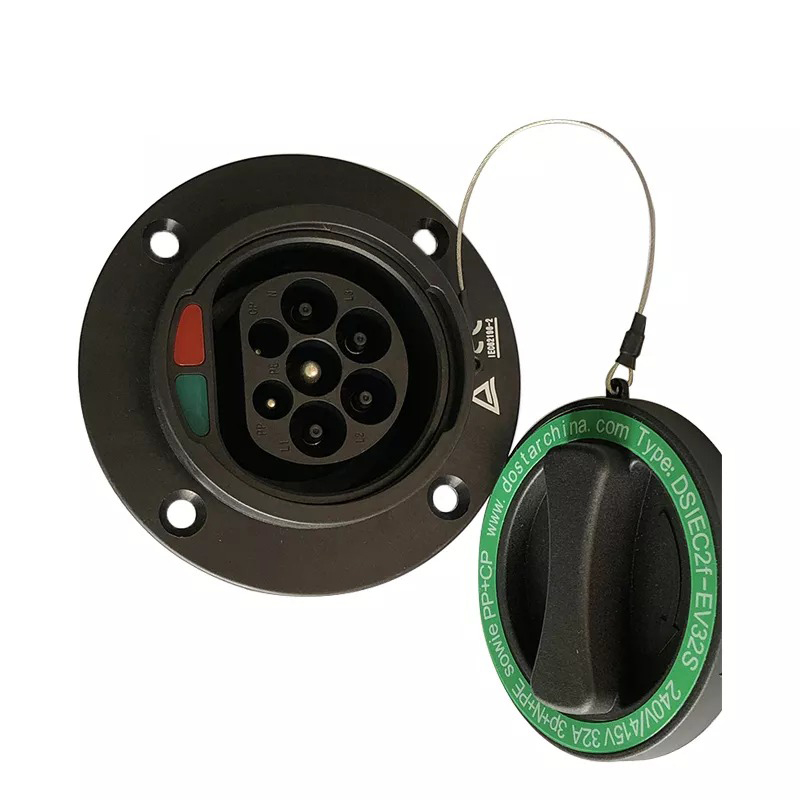

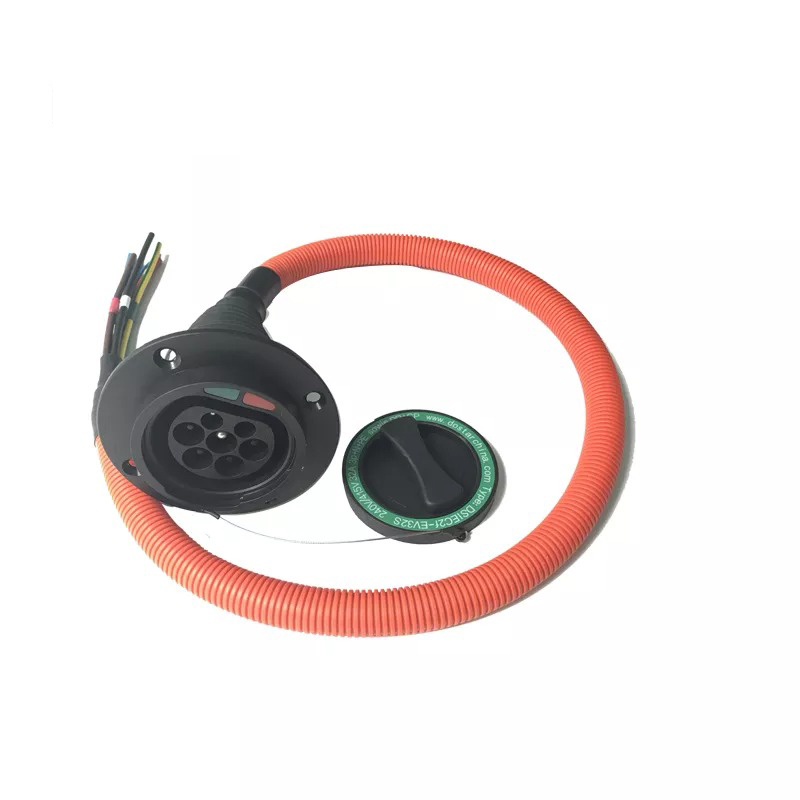

62196-2 32A Type 2 Socket 3 Phase EVSE Charging Socket with 1m 5m Cable
62196-2 32A Type 2 Socket 3 Phase EVSE Charging Socket with 1m 5m Cable
Brief Introduction
The IEC 62196 Type 2 connector (commonly referred to as mennekes) is used for charging electric cars within Europe.
|
Mechanical Properties
|
|||
|
Mechanical life
|
no-load plug> 10000
|
Insertion force:
|
<100N
|
|
Impact of external force
|
can afford 1m drop and 2t vehicle run over pressure
|
||
|
Electrical Performance
|
|||
|
The rated current
|
16A,20A,32A
|
The rated voltage
|
120V,250V
|
|
Insulation resistance
|
> 1000MΩ (DC500V)
|
Pins temperature rise
|
<50K
|
|
Withstand voltage
|
2500V
|
Contact impedance
|
0.5mΩ Max
|
Features
1.Conform to the provisions and requirements of IEC 62196-2 2016 2-IIb.
2.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3.XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
4.Excellent protection performance, protection grade achieved IP55 (working condition).
5.Adopted double color coating technology, personalized custom a variety of colors(Orange, blue, green,grey).
