4th generation TC 1800W 3300W 6600W Lithium ion EV onboard charger wholesale

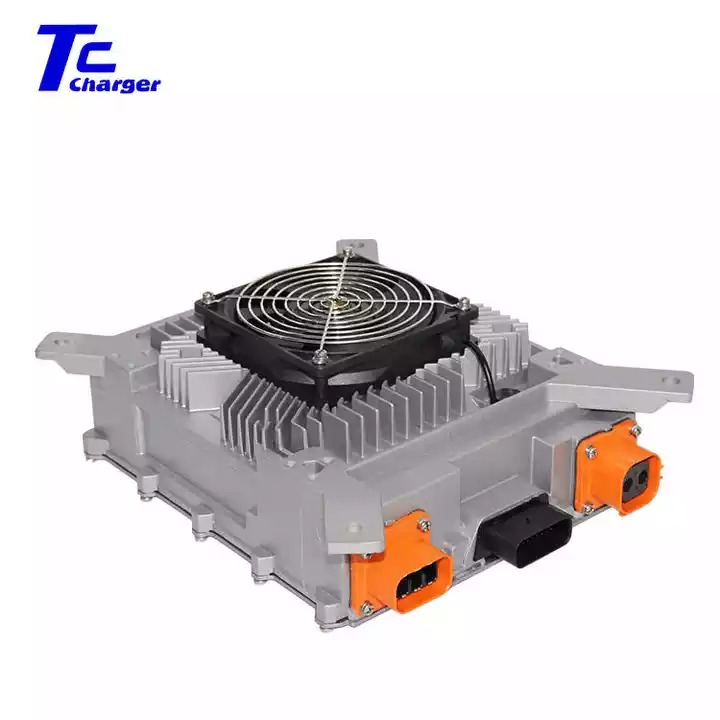

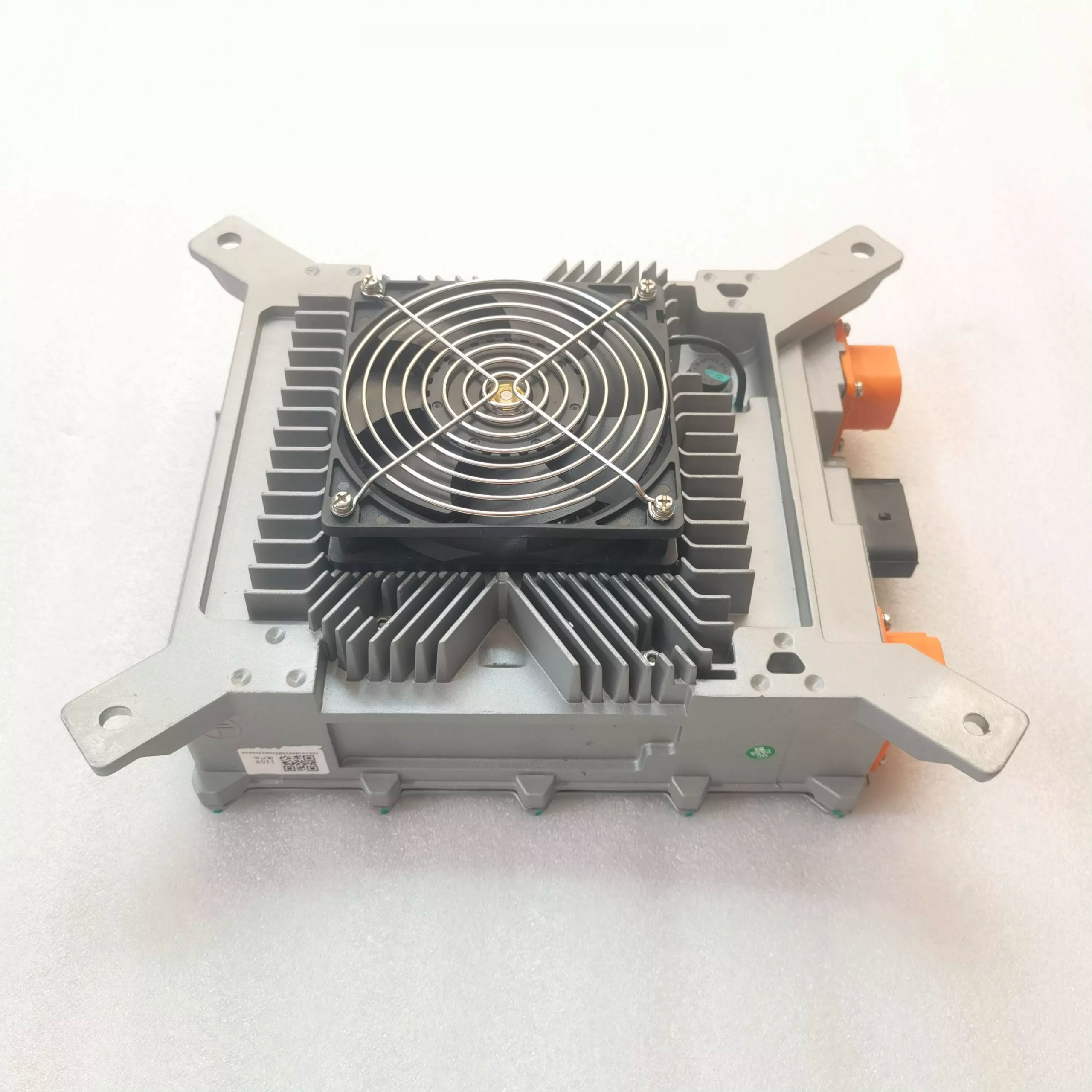

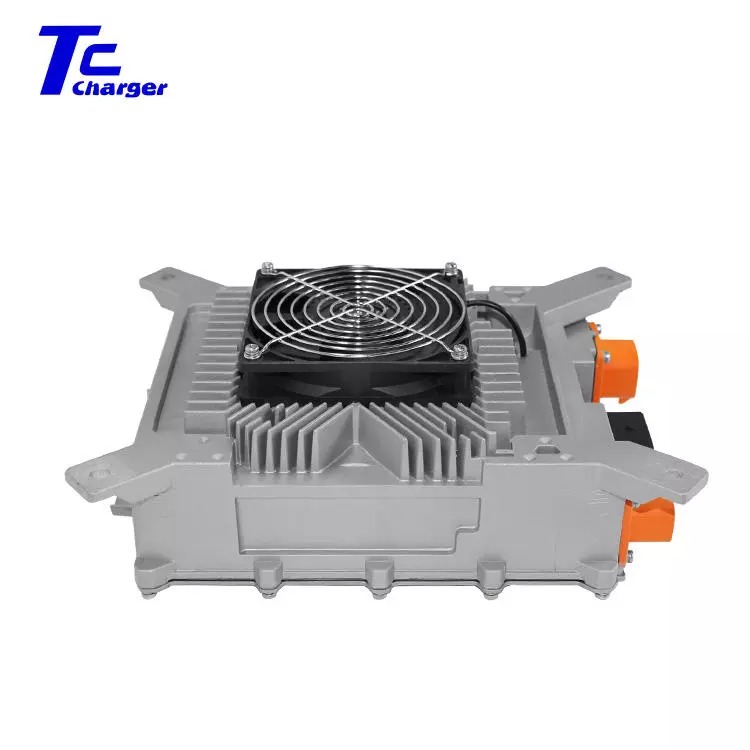

TC Charger 4th Generation — HK-LF series 6.6KW charger is a product specially designed for electric vehicle power battery supplementary electric energy according to the national standard of charger.

Models	Cooling method	Voltage Platform	Hardware	Power	Weight（kg）
HK-LF-108-60	Air cooling	108V	177V/60A	6.6KW	5kg
HK-LF-144-46	Air cooling	144V	202V/46A	6.6KW	5kg
HK-LF-312-20	Air cooling	312V	450V/20A	6.6KW	5kg
HK-LF-540-14	Air cooling	540V	680V/14A	6.6KW	5kg

Specification

Main Features :

1.Support UDS diagnosis CAN wake-up function



2.Fully sealed process can work reliably under the conditions of -40℃-+85℃



3.Built-intemperature sensor to shut down output under hazardous operating conditions (internal 90°C)



4. Protection class IP67 Can work
safely under short-term water immersion conditions

Voltage Platform		108V	144V	312V	540V
Output	Output voltage range	65~140V	90~195V	250~450V	350~680V
	Output current	60A	46A	20A	14A
	Output power	6600W@220VAC 3300W@110VAC
	Output Mode	CV / CC
	CV Accuracy	±1%
	CC Accuracy	±2%
	Ripple Voltage Coefficient	5%
Input	Input voltage range	AC 90~264V
	Frequency	45-65Hz
	Input current	32A
	Power factor	≥0.98 more than half load
	Effecificency	≥93% full -load
	Stand-by Consumption	≤5W
Low Voltage Output	Output Mode	Constant Voltage
	Output Voltage	13.8V
	Rated Current	5A
	CV Accuracy	±2%
	Output Power	≥62.5W
	Ripple Voltage Coefficient	1%
