300W 400W 500W 10000W 500KW Hybrid Solar System Manufacturer Panel Group Power Off Grid Solar Panel Mono Crystal
- 2022-11-08 -
|

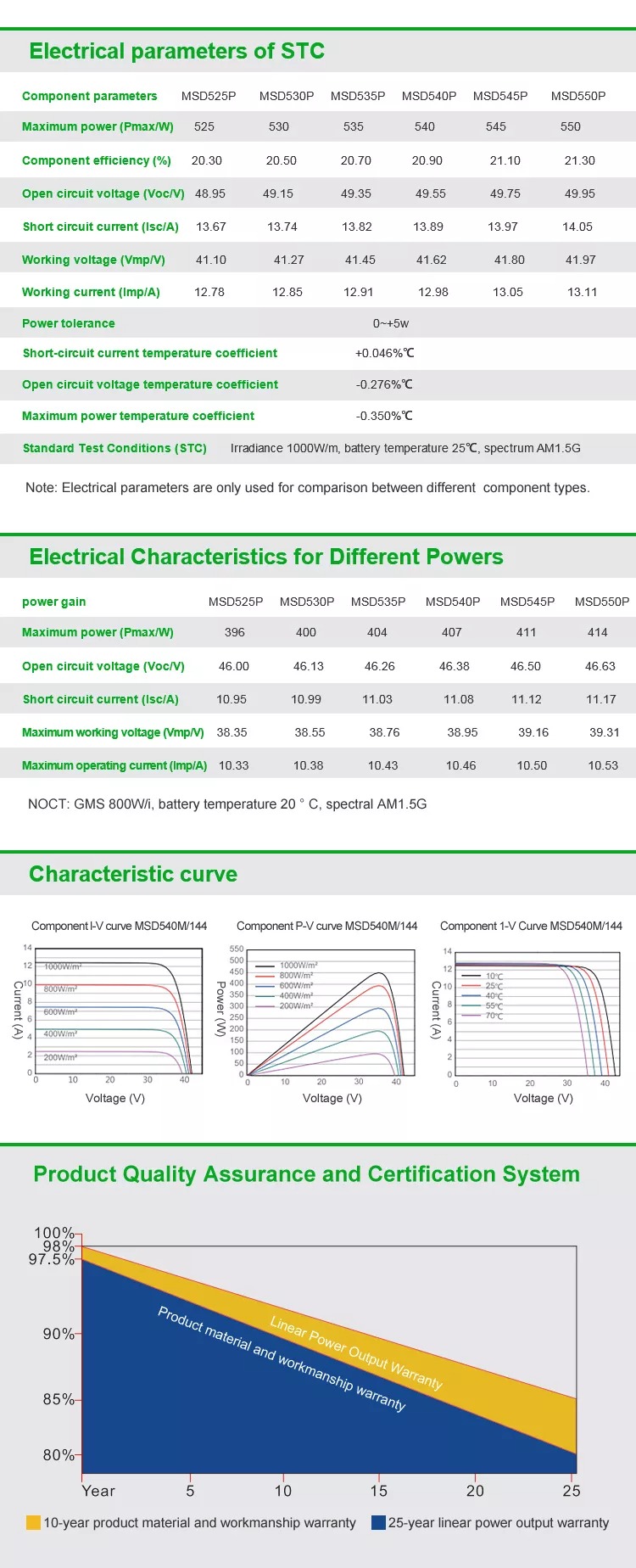

Product specification
|
|
|
Type of cell
|
single crystal (182mm)
|
|
Number of batteries
|
144 tablets (6 x 24)
|
|

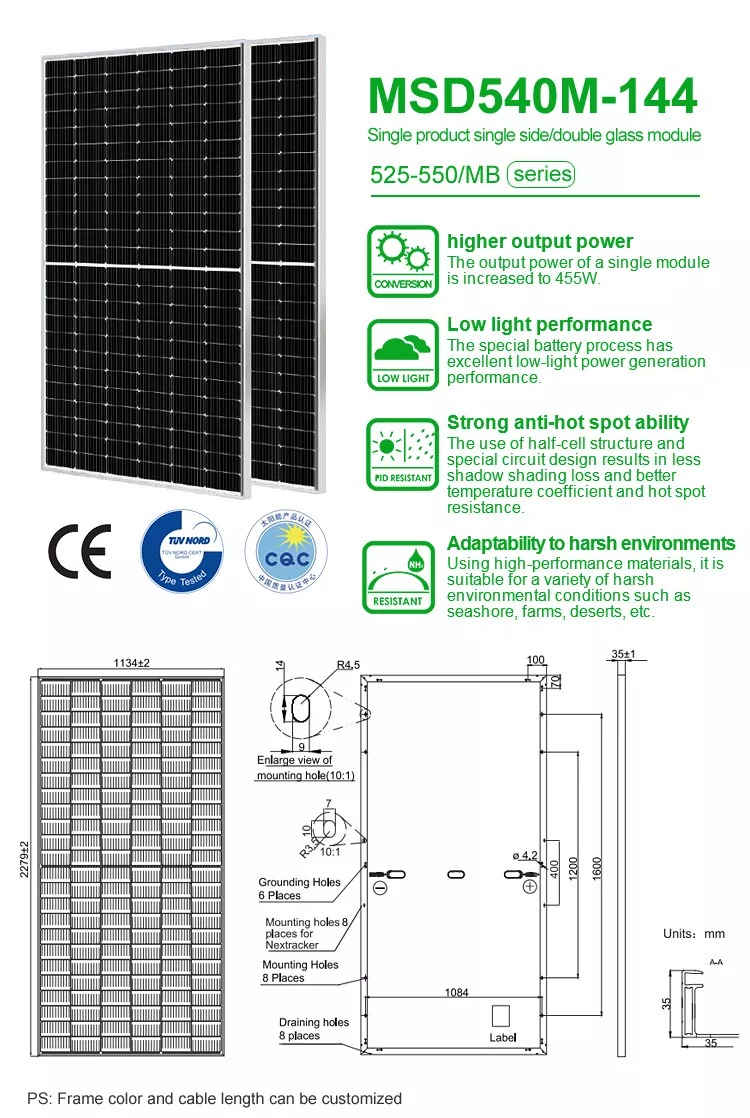

Component size
|
2279 * 1134 * 35 mm
|
|
Weight
|
28.5kg/tablet
|
|

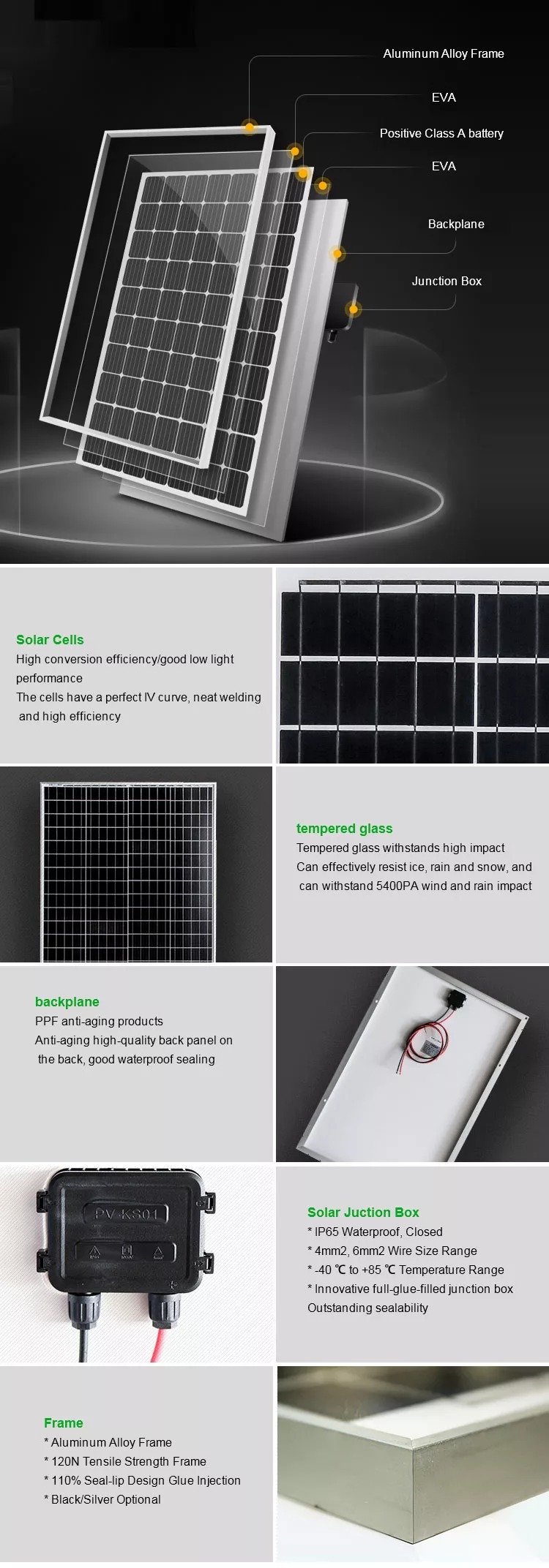

Structure
|
3.2 high permeability coated toughened glass +EVA film + white backplane
|
|
Frame
|
Anodized aluminum alloy
|
|
Junction box
|
Trad, protection class IP68
|
|
Cable
|
4.0mm2, (+) 300mm/ (-) 400mm
|
|
Mechanical load
|
Front 5400Pa/ back 2400Pa (static pressure)
|
|
Package type
|
31 tablets/tre
|
|
The volume of each box
|
3.372 cubic meters/torre
|
|
40 high container capacity
|
620 pieces
|
