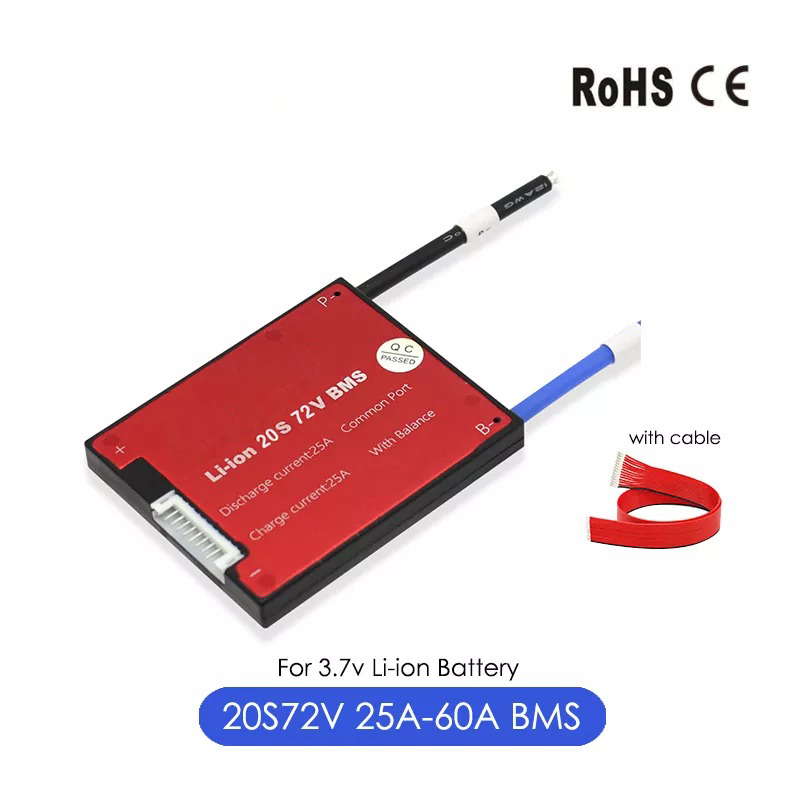

3.7V 72V li-ion NMC Battery BMS 20S 30A 40A 50A 60A PCM With Balance For Electric Car E-Bike Scooter Solar Battery pack bms
- 2022-12-19 -
Our advantage
In stock , Welcome Dropshipping, 3 years warranty ,Free replacement for any quality problem .
Overview
◆separate port for charge/discharge We can customize any PCB from 1S to 30S lithium batteries with different current.
◆According to the customer request we can develop PCM in different sizes and structures.
◆BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle serivce life
time.
◆Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.
◆Strong load ability, constant discharge current 10A/25/35A/45A/60A , use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.
◆IC itself has power balancing function. The circuit is simple and reliable.
◆Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load won’t affect the PCB and the battery.Temperature protection during charging and discharging.
◆PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.
Product Parameters
|
Products Name
|
3.7V Battery pack 20S 72V E-bike Li ion battery bms 18650 BMS 30A 40A 50A 60A battery BMS Charging Voltage 54.6V With balance
|
|
Rated Voltage
|
Rated/Nominal 3.7V
|
|
With Balance
|
35MV Started when Voltage reach 4.18V
|
|
Short Circuit
|
Yes
|
|
Charging Voltage
|
Series *4.2V
|
|
Separate Port
|
Optional (8A discharging port)
|
|
Charge current
|
20A 30A 40A 50A
|
|
Discharge current
|
30A 40A 50A 60A
|
|
Peak Discharge
|
75A 100A 120A 250125A
|
|
Custom Service
|
Logo,current,package,series
|
