Product Description
3.3kw 72V 96V 144V 312V 540V 6A 10A 23A 32A 40A CAN PROTOCOL bus on board battery charger
Brief introduction
OBC(on board charger) and its charging system convert the AC power of the power grid into DC power that can be accepted by the power battery to realize the function of charging the power battery.
|
Output Characteristics
Items Rated Value
|
Environmental Parameters |
||
|
Accuracy of Output Volt
|
1%
|
Working Temperature
|
-35℃~ +85℃
|
|
Accuracy of Output Current
|
3%
|
Storage Temperature
|
-55℃~ +100℃
|
|
Ripple Factor of Output Volt
|
1.5%
|
Relative Humidity
|
5% ~ 95%
|
|
Maximum DC Output Power
|
1800W, 3300W, 6600W
|
Altitude
|
3000m
|
|
Efficiency
|
≥94%
|
Cooling
|
Air Cooling and Water Cooling
|
|
Power Factor
|
≥0.99
|
Environmental Enclosure
|
IP67
|
Protection Feature
1.Output over voltage protection
2.Output over current protection
3.Output short circuit protection
4.Input under voltage protection
5.charger over heat protection
6.battery over heat protection

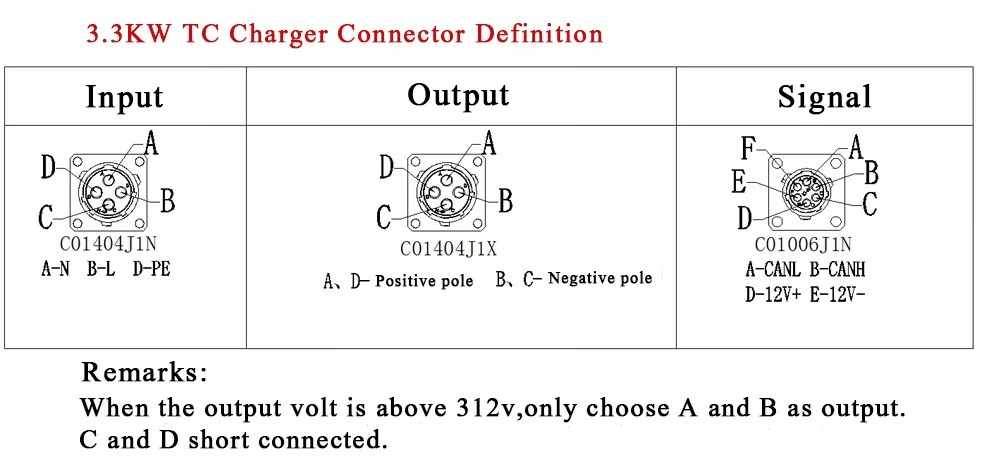

Drawing of charger

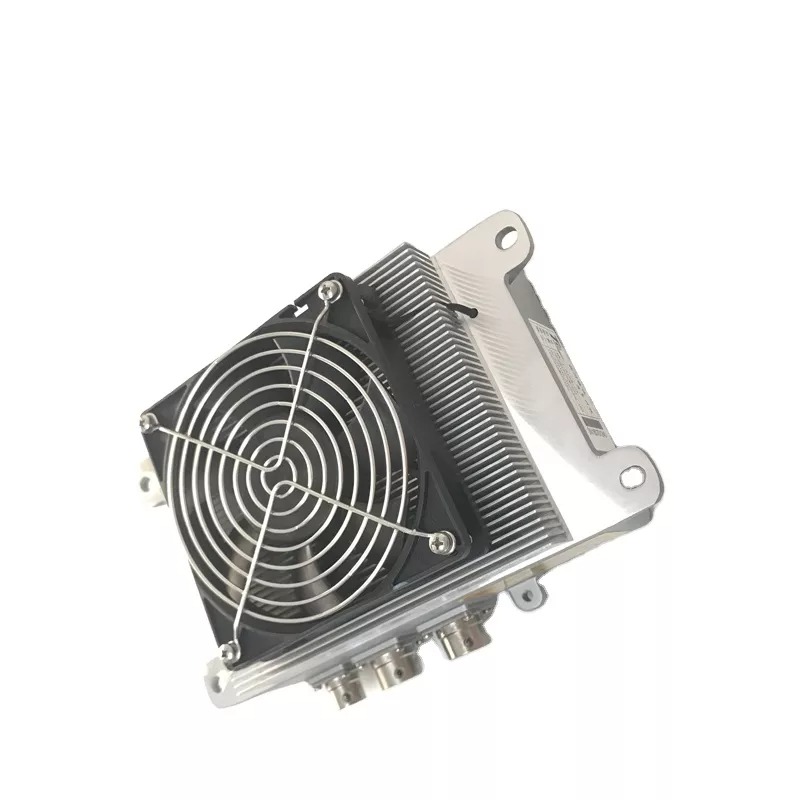

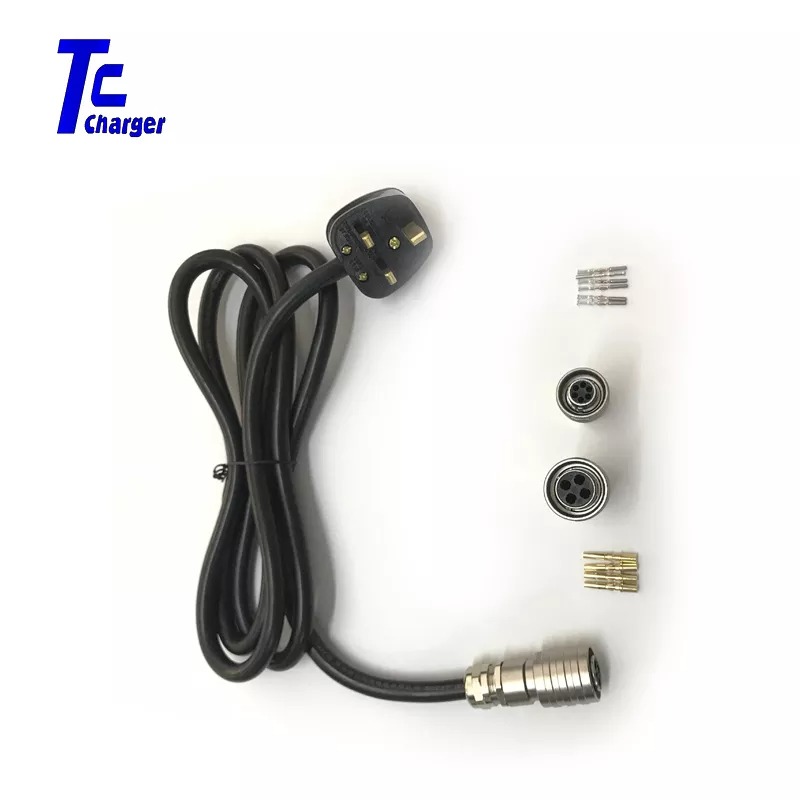

Detailed Images
Models
|
MODEL
|
Installation Size
|
N.W
|
|
1.8kW OBC
|
203mm X 103mm X 125mm (L*W*H)
|
4.5kg
|
|

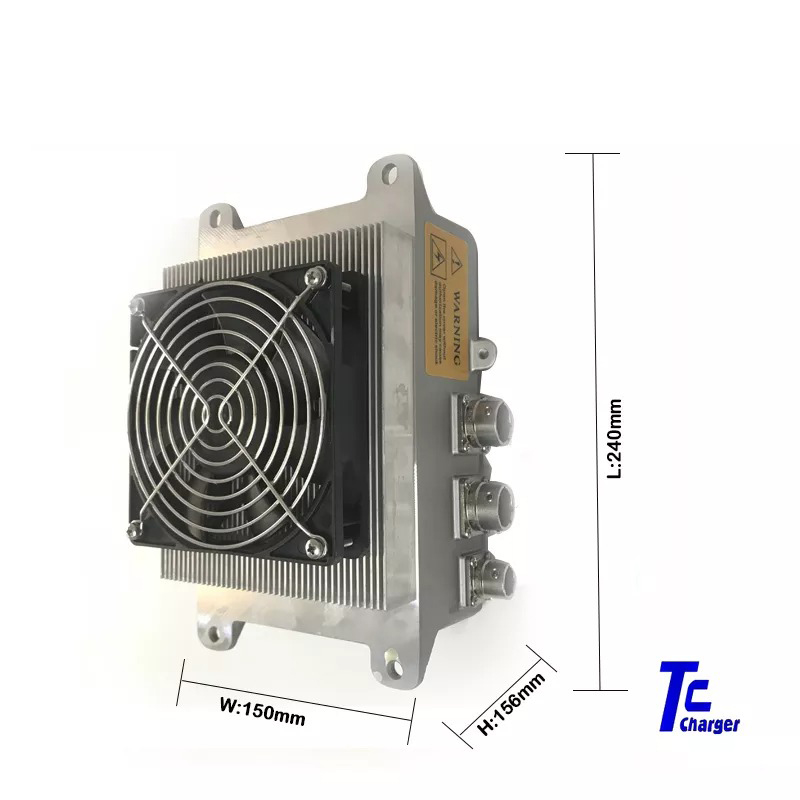

3.3kW OBC
|
240mm X 150mm X 156mm (L*W*H)
|
7.5kg
|
|
6.6kW OBC
|
360mm X 247mm X 167mm (L*W*H)
|
14.5kg
|
|
3.3kW CDU
|
Customized
|
/
|
|
6.6kW CDU
|
Customized
|
/
|
