Cable material is TPU, the best material in the market at present, conforms to the the latest European Union standards, lighter and thinner, long time durability, low temperature resistance

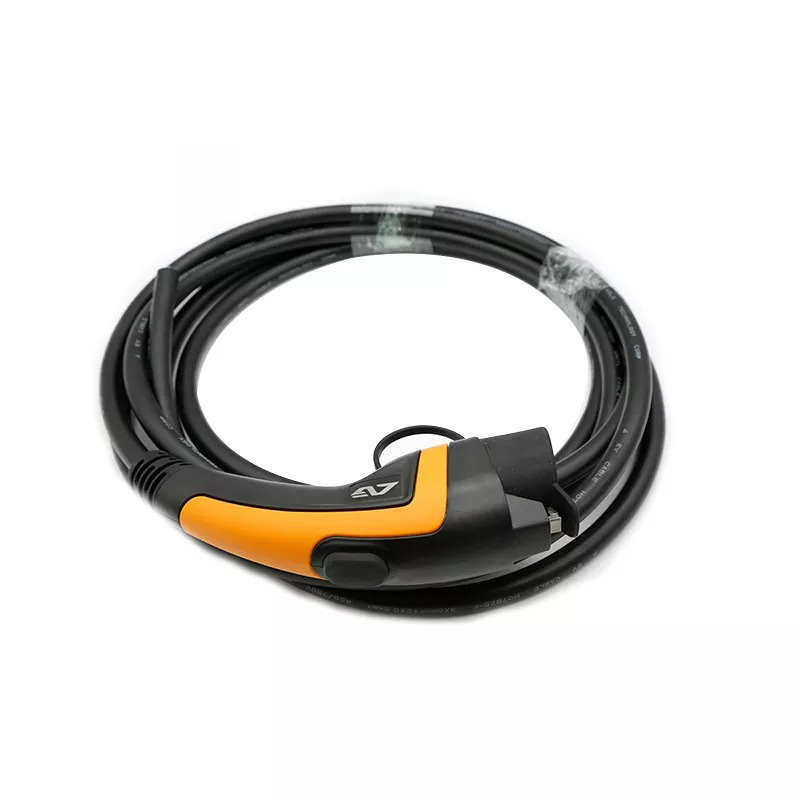

16A 480V Three Phase Mode 3 Type 2 Cable EV Plug Type 2 Connector Charging Cable
- 2022-12-14 -
Product Description
16A 480V Three Phase Mode 3 Type 2 Cable EV Plug Type 2 Connector Charging Cable
Brief Introduction

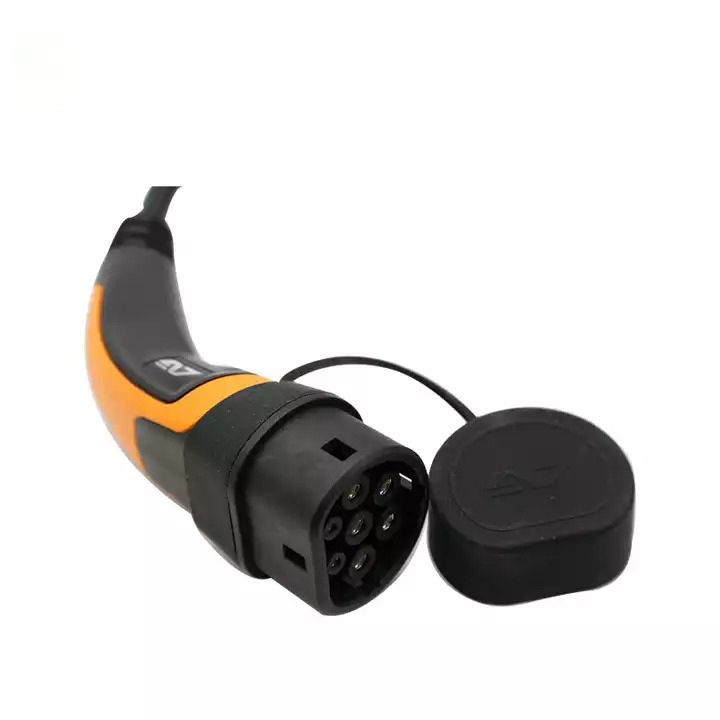

The IEC 62196 Type 2 connector (commonly referred to as mennekes) is used for charging electric cars within Europe.
|
Mechanical Properties
|
|||
|
Mechanical life
|
no-load plug> 10000
|
Insertion force:
|
<100N
|
|
Impact of external force
|
can afford 1m drop and 2t vehicle run over pressure
|
||
|
Electrical Performance
|
|||
|
The rated current
|
16A,20A,32A
|
The rated voltage
|
120V,250V
|
|
Insulation resistance
|
> 1000MΩ (DC500V)
|
Pins temperature rise
|
<50K
|
|
Withstand voltage
|
2500V
|
Contact impedance
|
0.5mΩ Max
|
Features
1.Conform to the provisions and requirements of IEC 62196-2 2016 2-IIb.

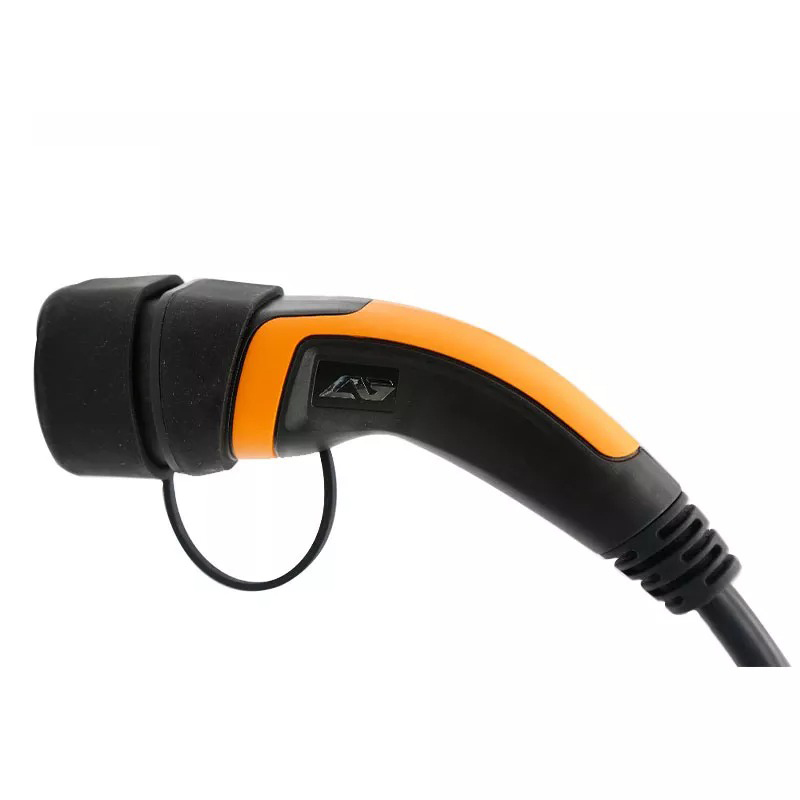

2.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3.XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
4.Excellent protection performance, protection grade achieved IP55 (working condition).
5.Adopted double color coating technology, personalized custom a variety of colors(Orange, blue, green,grey).
