Product Description
The natural method of passive balancing a string of cells in series can be used only for lead-acid and nickel-based batteries.
This voltage balancer does not waste energy in resistors; it transfers the coulombs from a strong cell to a weak cell.
This is ideal for electric vehicles to prolong its battery cycle life by preventing cell over/under charging; promoting cost-effective sustainable transportation.
Batteries are expensive, this project will help any diy electric vehicle battery to last longer.
|
Battery capacity limited
|
Unlimited
|
Battery count limited
|

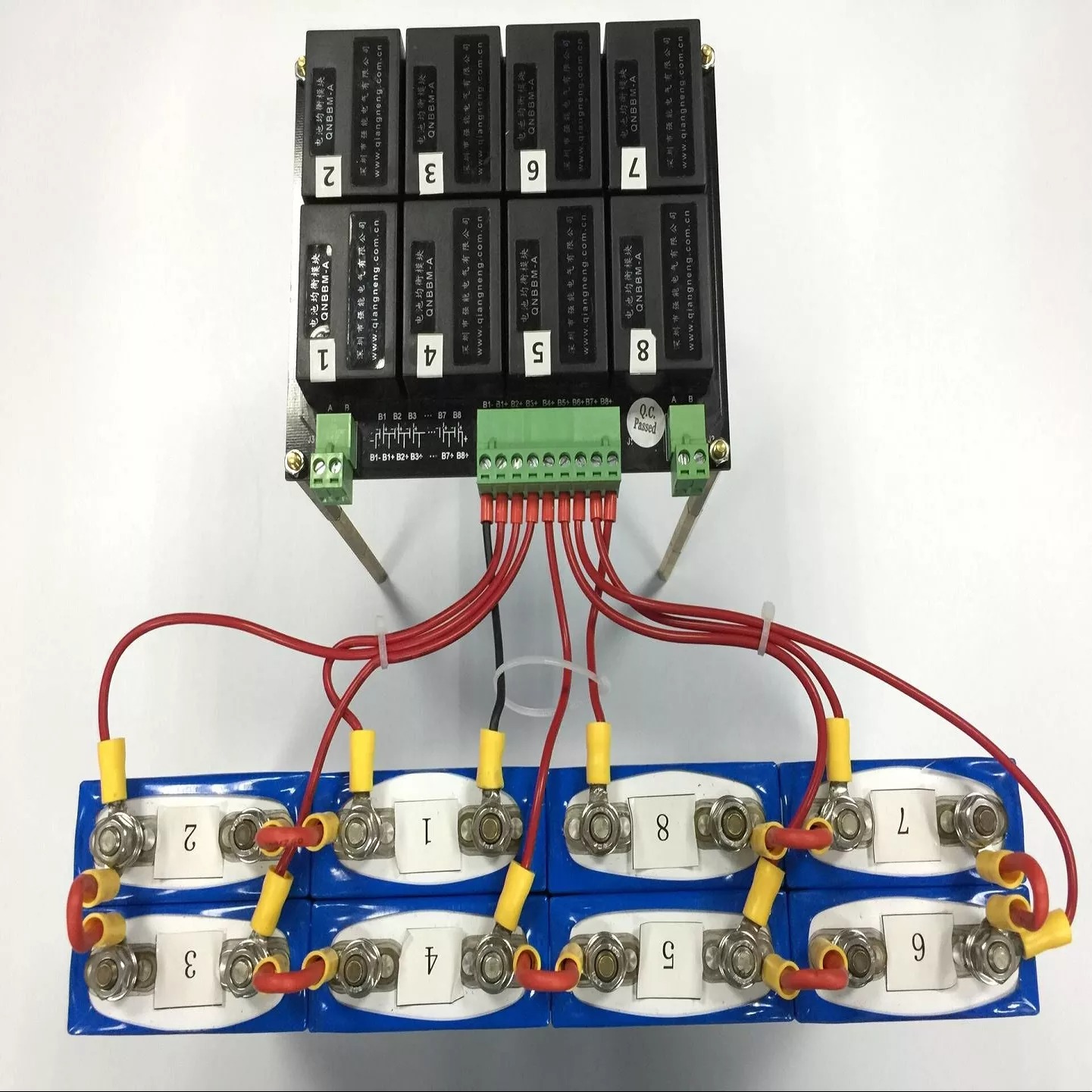

2S~unlimited At least balance 2 cells
|
|
Working voltage
|
1.8V~5V (2V lead acid battery and lithium battery) 4V~9V (6V lead acid battery)
9V~15V (12V lead acid battery and lithium battery)
|
Battery type limited |
LiFePo4, LiMnO4 etc
AGM, Gel, Flooded battery and so on.
|
|
Power consumption
|
<50mW per 1s
|
Balance method
|
Energy transfer/ Dynamic
|
|
Voltage difference VS Balance current
|
300mV — 1A 1V — 3A
|
Voltage difference after using
|
< 10mV < 30mV(12V lead acid)
|
|
Working efficiency
|
> 94%
|
Working temperature
|
-40℃ ~ +80℃
|
|
BMS limited
|
Can work with BMS or Wordking independently
|
Storage temperature
|
-40℃ ~ +100℃
|

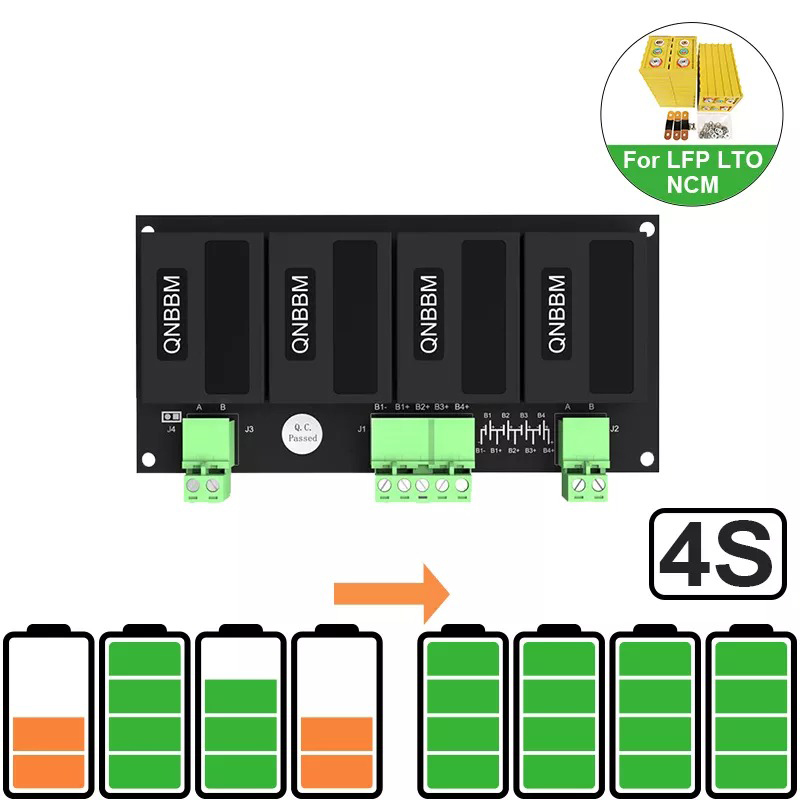

1. Keep the voltage difference of each cell within 10mv.
2. Extend the battery span life 2-3times. Without capacity & voltage & battery type limitation .
3. Your best battery pack protector. Perfect combination with BMS Let’s Save cost from now.
